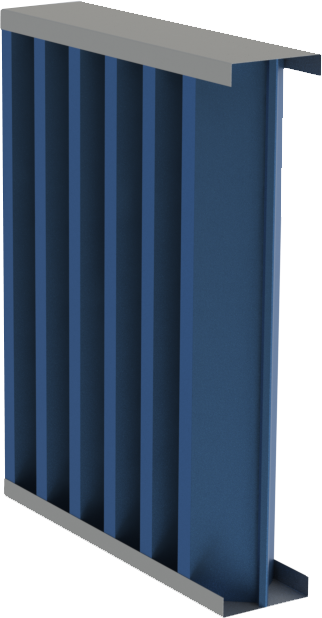

Louvreclad Ellenborough Series® features sleek aluminum chevron louvres with zero vision screening, perfect for privacy and airflow. Powder-coated or anodized, it’s ideal for stylish commercial exteriors.
Performance
Features zero vision screening with Class B rain defence and Class 3 aerodynamics. Ideal for commercial exteriors requiring both privacy and effective airflow.
Aesthetics
95mm deep aluminium chevron louvres with a 62.5mm pitch. Available in powder-coated or anodised finishes for a stylish, low-maintenance look.
Design
Suitable for vertical and horizontal installations. Prefabricated panels or continuous louvres with integrated doors, ensuring a seamless, high-quality finish.
Durability
Constructed from extruded aluminium, providing a durable, long-lasting solution for commercial building exteriors and internal privacy screens.

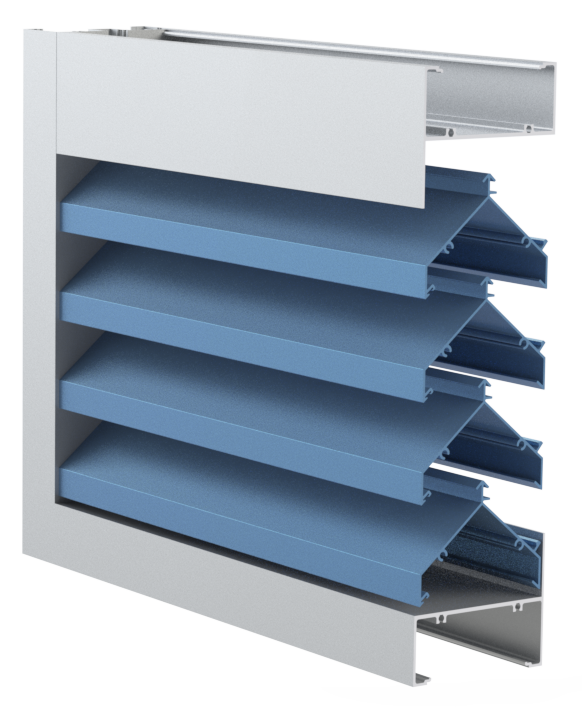

Chevron extruded aluminium louvres
Aerodynamics
Discharge Coefficient
Effective Aerodynamic Area
Rain Resistance
Effective Rain Resistance
Free Open Area
Depth
Pitch
Max span
Weight
Orientation
Selecting the right louvreinvolves these steps.
To select the right performance louvre for your project design: 1) The mechanical engineer defines the required volume flow rate (m ³/s) for mechanical plant or passive ventilation dictated by the mechanical equipment behind the louvres. 2) Mechanical engineer defines the maximum allowable pressure drop across a louvre before fan performance suffers. 3) The architect and engineer then balance the louvre façade area (m2) against the pressure drop requirements, required rain resistance, and aesthetics to get a mutually workable outcome. 4) Finally you can then specify the louvre that works for your design aesthetically and achieves the performance classification required for both aerodynamics and rain defence using the Australian Standard AS4740:2000 classification system. Please note: louvre performance is proportional to the design airflow. For example, the higher the air velocity, the lower the rain defence.

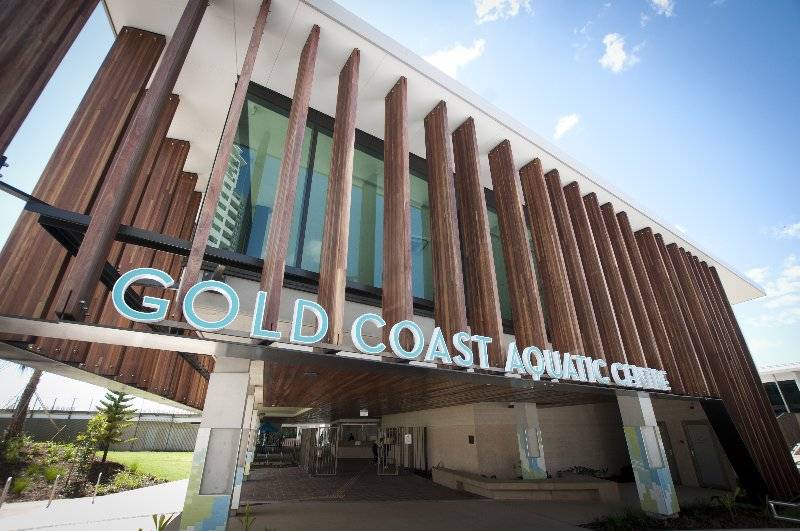

Commercial
Health
Projects will be delivered in a timely manner, be on specification, engineered to Australian standards and finished to the highest quality.
Should you require samples, we offer up to 3 product samples free of charge. Special colour requests POA.
Reach out today to discuss your facade solution requirements; we would love to hear from you.
